Electric Motor Slide Rails

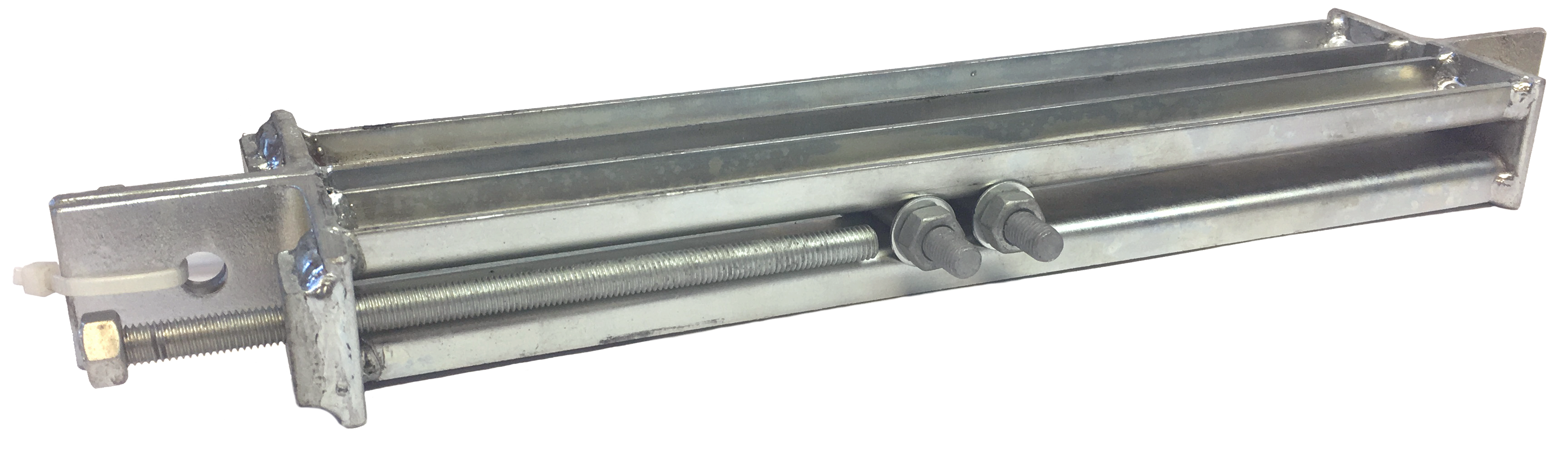

Slides rail for electric motor installation made from fabricated galvanised steel. Ideal for the installation of foot mounted electric motors to floor, wall and overhead mounting requirements. They are also suitable for vee belt alignment and tensioning. The range includes 80-90, 100-132, 160-180, 200-225, 250-280 and 315 frame sizes. Each set includes fastening bolts and adjusting screws.
| Code | L | Ø | H | D | T | A | Bolt size | Frame | BT | XC Motor Foot Bolts |
| SR0809 | 355 | 10 | 30 | 30 | 6 | 325 | M10 x 150 | 71 | 90 | M8 x 40 |
| 80 | 83 | |||||||||
| 90 | 67 | |||||||||
| SR1013 | 470 | 12 | 44 | 45 | 6 | 430 | M10 x 200 | 100 | 171 | M10 x 60 |
| 112 | 137 | |||||||||
| 132 | 106 | |||||||||
| SR1618 | 615 | 15 | 64 | 63 | 10 | 565 | M12 x 220 | 160 | 160 | M12 x 80 |
| 180 | 125 | |||||||||
| SR2022 | 785 | 19 | 72 | 82 | 12 | 725 | M16 x 280 | 200 | 210 | M16 x 110 |
| 225 | 140 | |||||||||
| SR2528 | 945 | 24 | 92 | 102 | 16 | 885 | M20 x 300 | 250 | 250 | M20 x 130 |
| 280 | 190 | |||||||||
| SR3100 | 1215 | 28 | 100 | 100 | 20 | 1115 | M20 x 450 | 315 | 330 | M24 x 150 |
